DAVISCOMMS (S) PTE LTD

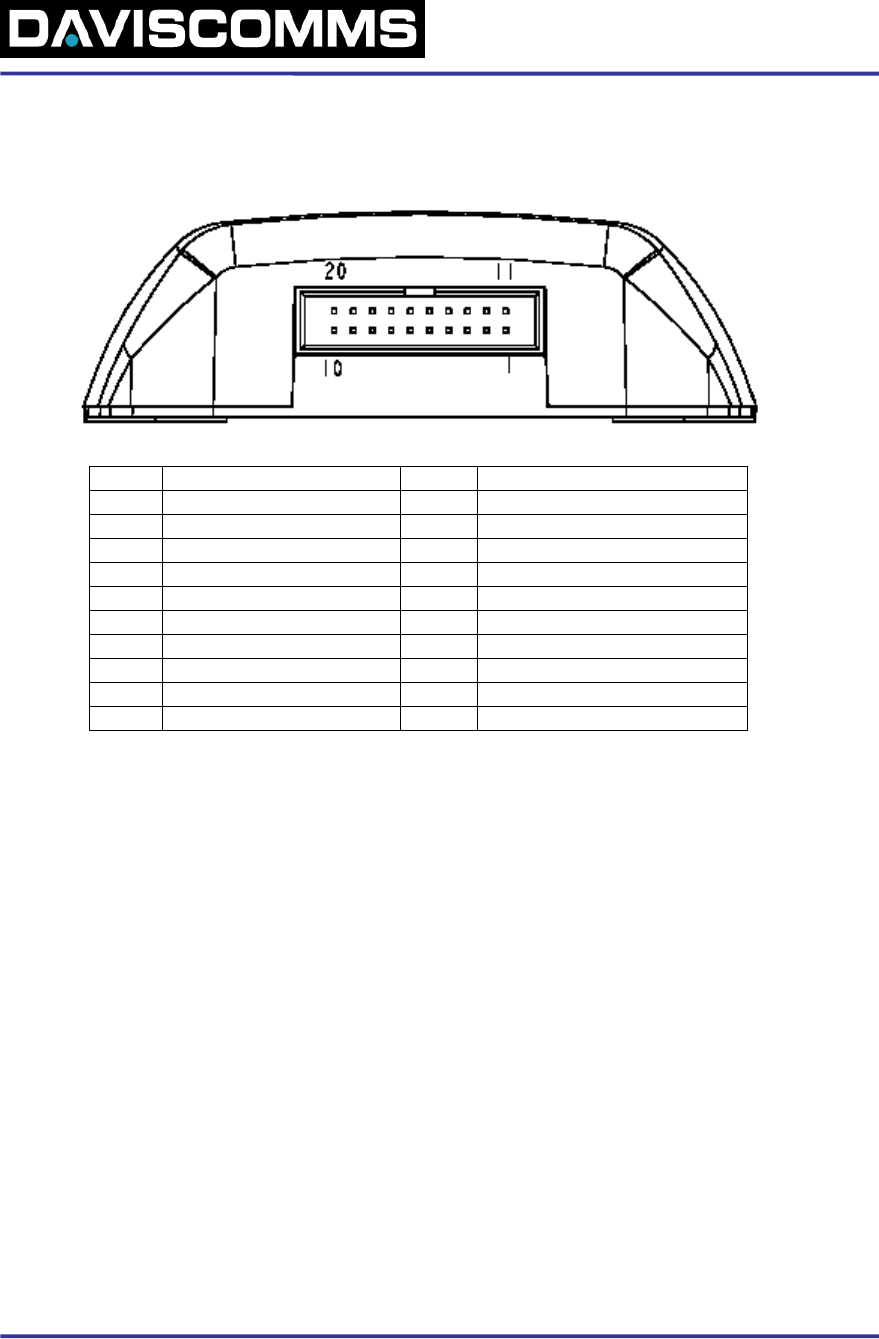

7. TMR1P 20-PIN CONNECTOR SPECIFICATION

No. Description No. Description

1 SDATA 11 VIN3

2 D0 - 1 Amp 12 D1 – 1 Amp

3 D2 13 D3

4 D4 14 D5

5 D6 15 D7

6 TX1-RS232 level 16 RTS

7 TXD-TTL level 17 CTS

8 VINI 18 LED

9 CLK 19 VIN2

10 GND 20 GND

VIN1 - Power Supply for Pager System, 3.0V-5.0V

VIN2 - Power Supply for Pager System, 8.0V-15.0V

VIN3 - Power Supply for Customer Configurable Ports, 3.0V-15.0V

Note: Please DO NOT use VIN1 and VIN2 at the same time

25 500088R03

DAVISCOMMS (S) PTE LTD

Blk70 Ubi Crescent #01-07 Singapore 408570. Tel: (65) 65471127 Fax: (65) 65471129 Fax: (65) 65471129
